The architectural studio of Carlos Vega has been developing and growing over the past 30 years, producing high quality work for projects of varying scale and design. Always aiming to offer quality and originality, the studio pushes the boundaries of creativity, design and method to create spaces that are not only attractive but practical and comfortable to live in.

Carlos Vega’s designs are a perfect blend of the technical and the aesthetic. He seeks to integrate his designs with the local environment in an elegant and sustainable way.

It is Carlos’ long and lasting love-affair with Zahara de los Atunes that has led to his bringing his architectural creativity to this historical fishing village, with its kilometres of white, sandy beaches and tradition of fishing for blue-fin tuna. Now, hand in hand, and in collaboration with Zahara Villas, the Oasis project is born; a project that combines functionality, design and quality. 2,425 m2 of perfect, sustainable urban design offering modernity alongside tradition.

We are very pleased to note that Adolfo Sanchez, Asturian architect and friend of Zahara for more than 8 years, also lends his expertise to this project.


The Oasis project proudly occupies a large plot of land, just 3 minutes from the magnificent Zahara beaches, in a quiet, residential area, popular with locals and tourists alike. This sought after location is away from the central hustle and bustle of this busy, lively village. There is no need for a car here, as to walk to the commercial centre with its plentiful shops, bars, restaurants, hotels, local market, medical centre etc, takes only a few minutes.

The Oasis of Zahara offers a variety of house styles, each with three bedrooms and two bathrooms. Should you, the client, wish to alter the internal design to incorporate up to 4 or 5 bedrooms and 3 or 4 bathrooms, arrangements can be made, according to current plans, to create the perfect space for each individual purchaser.

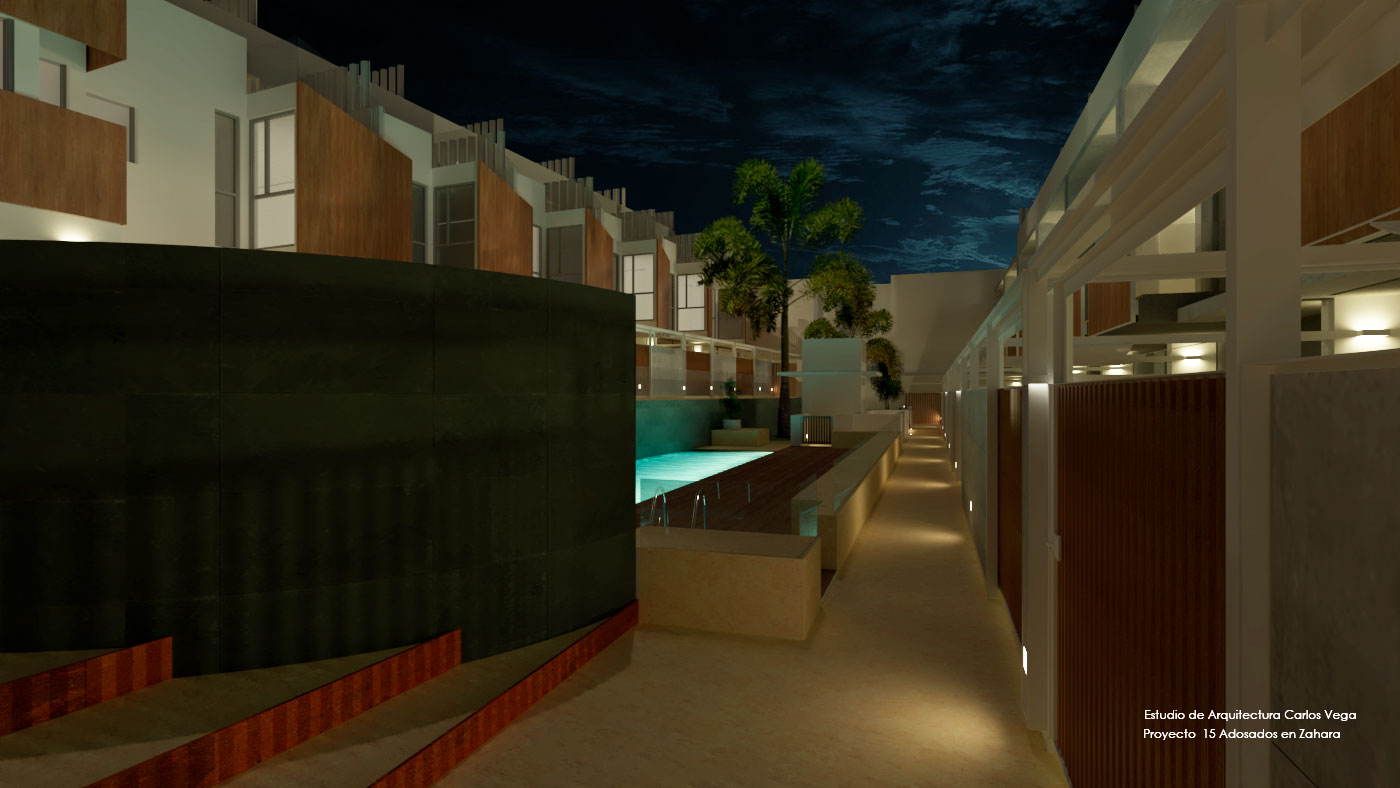

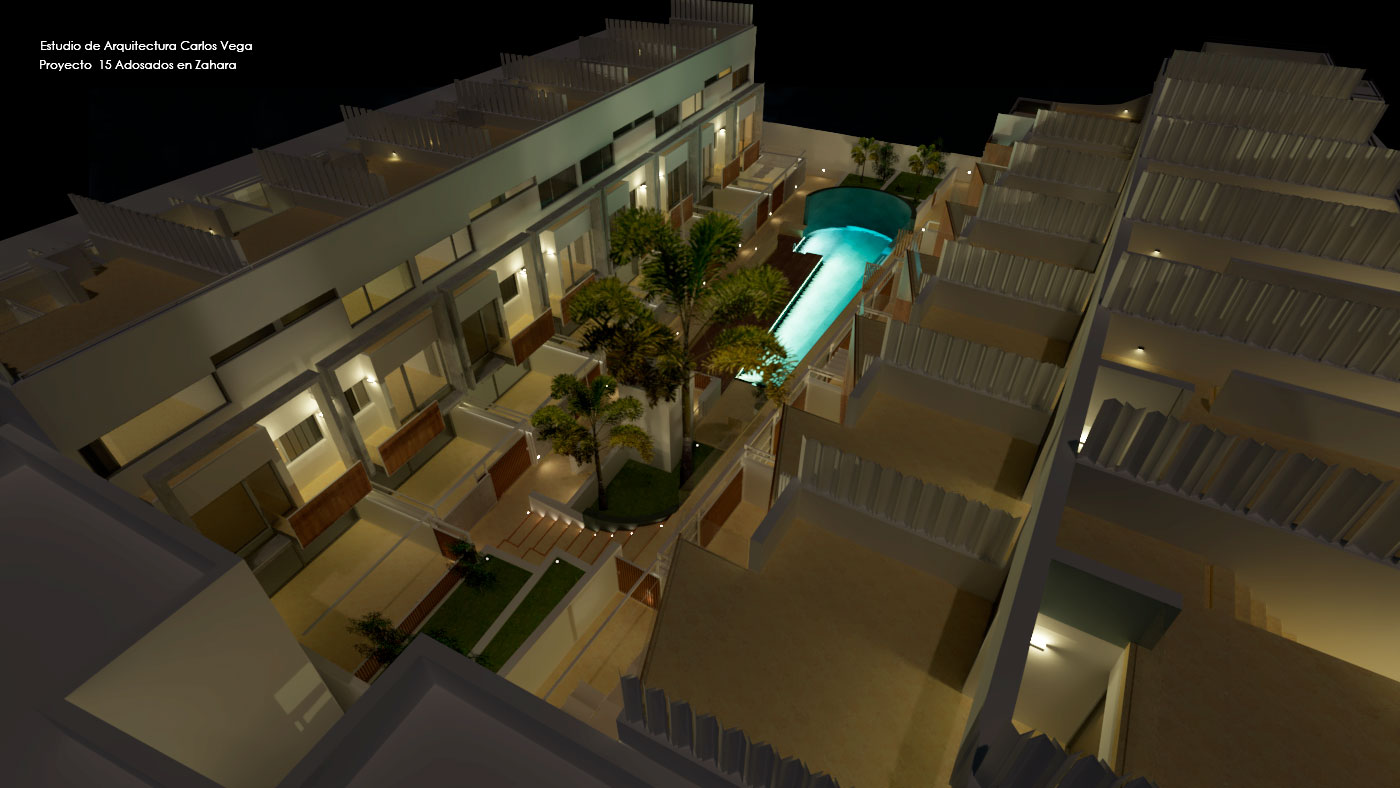

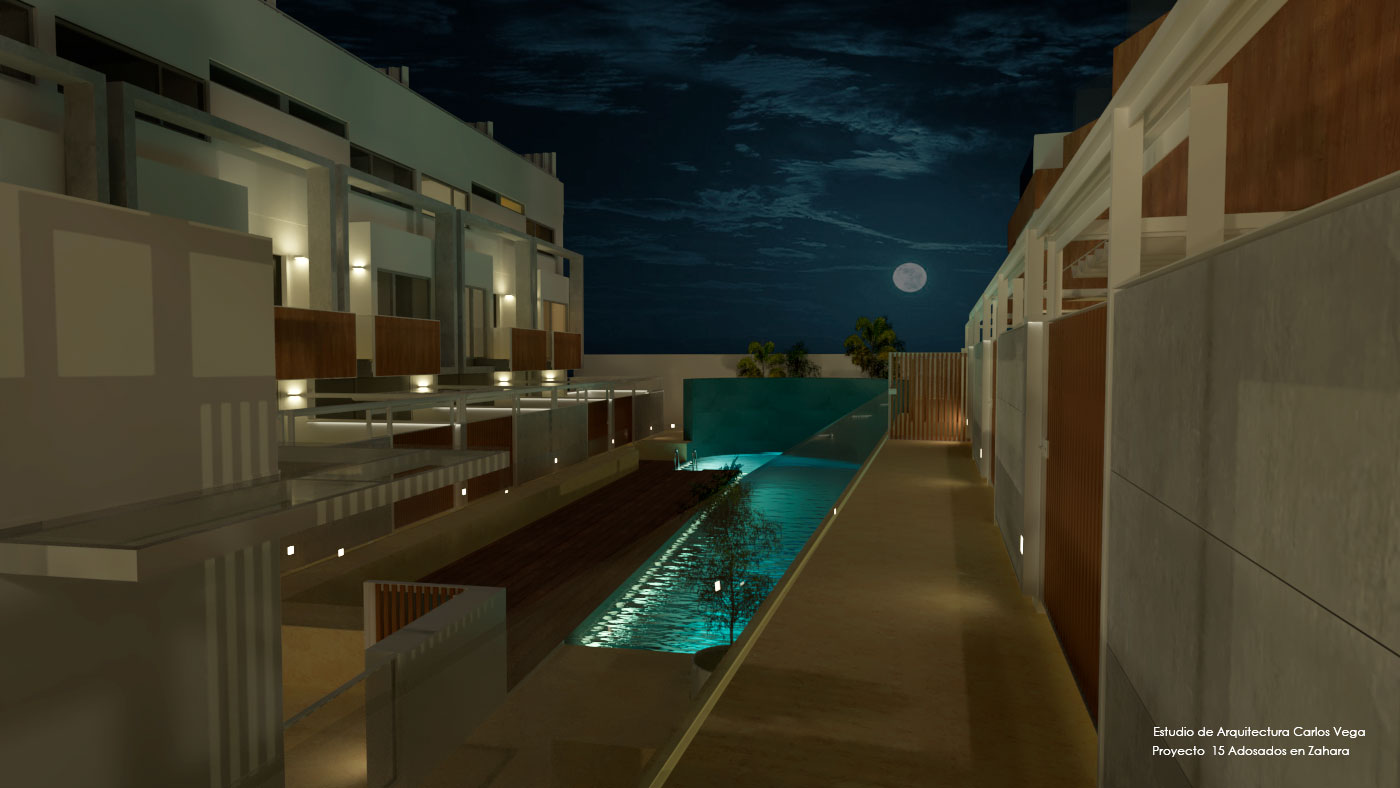

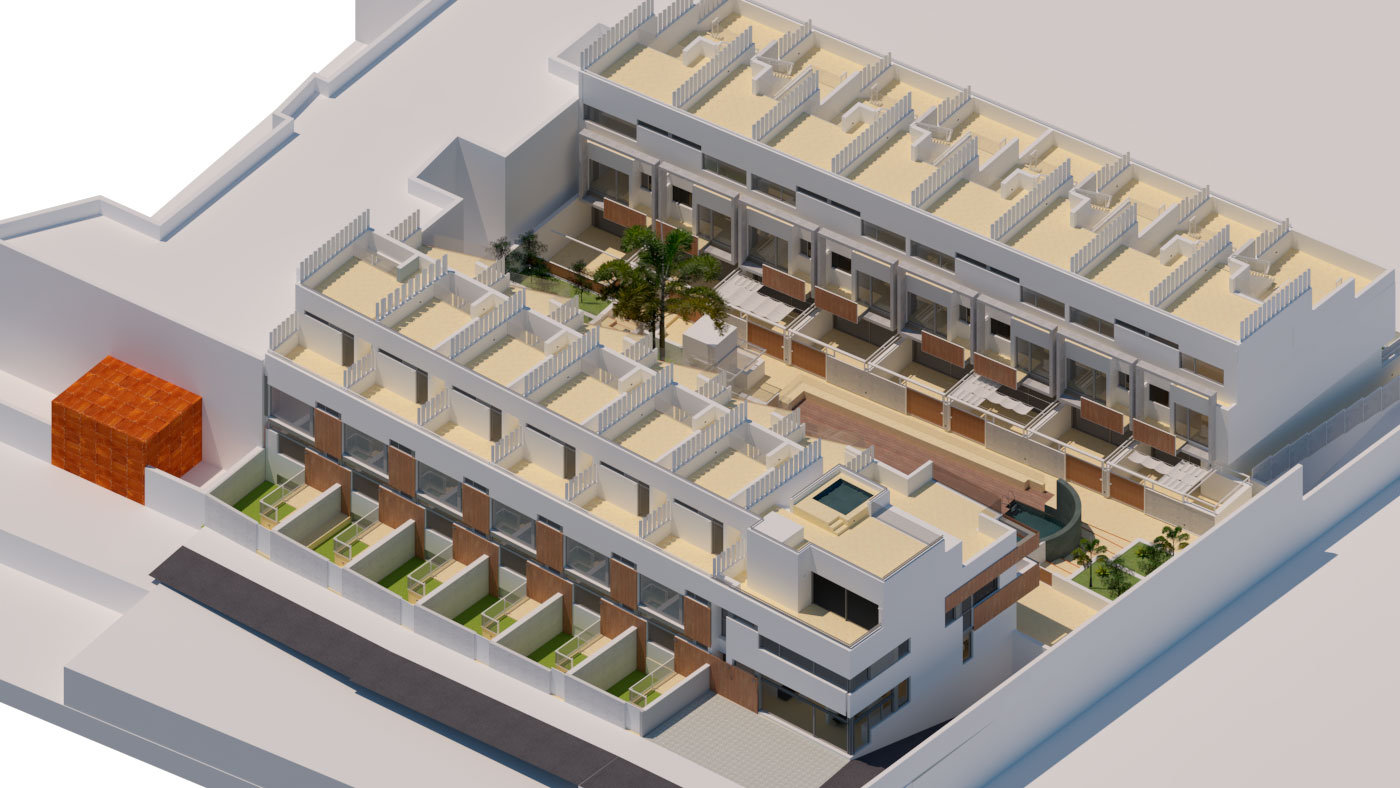

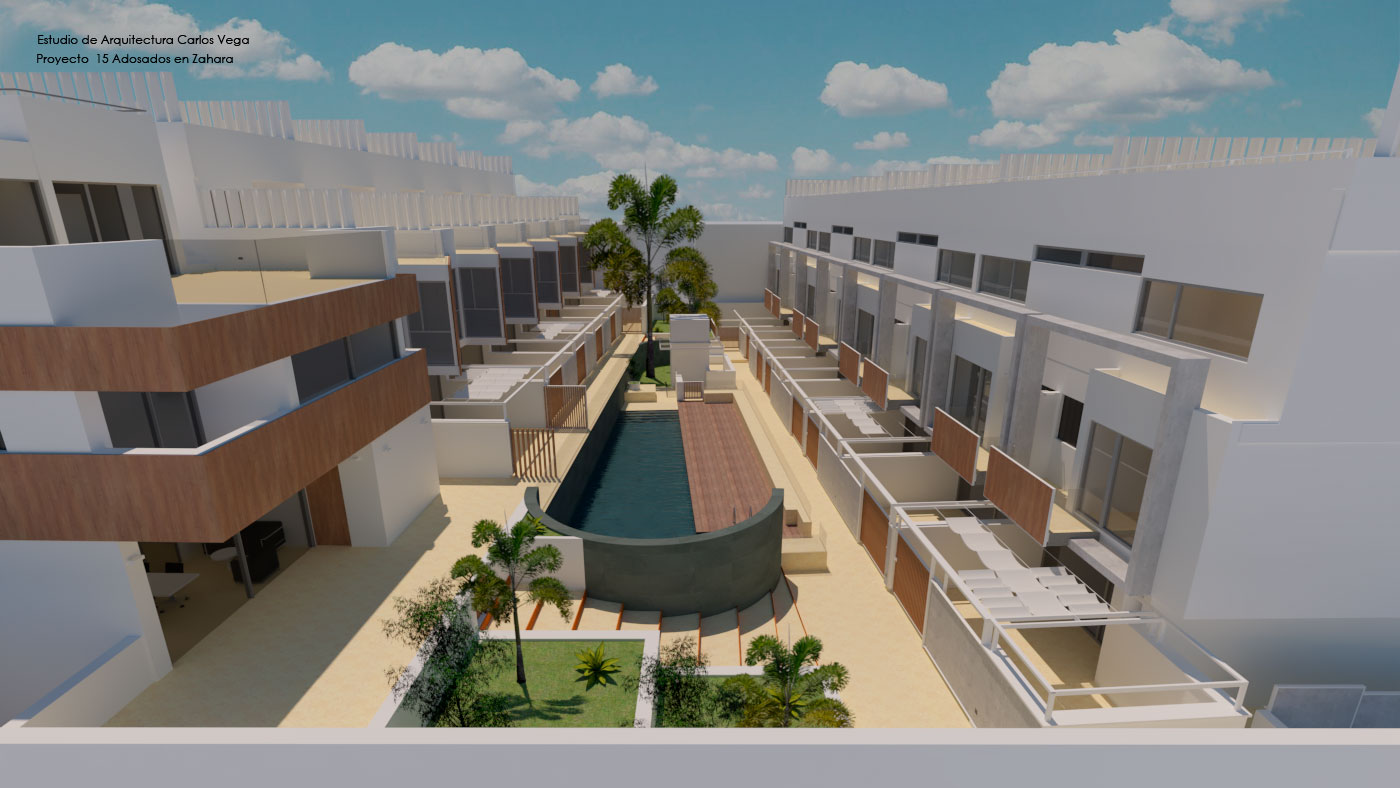

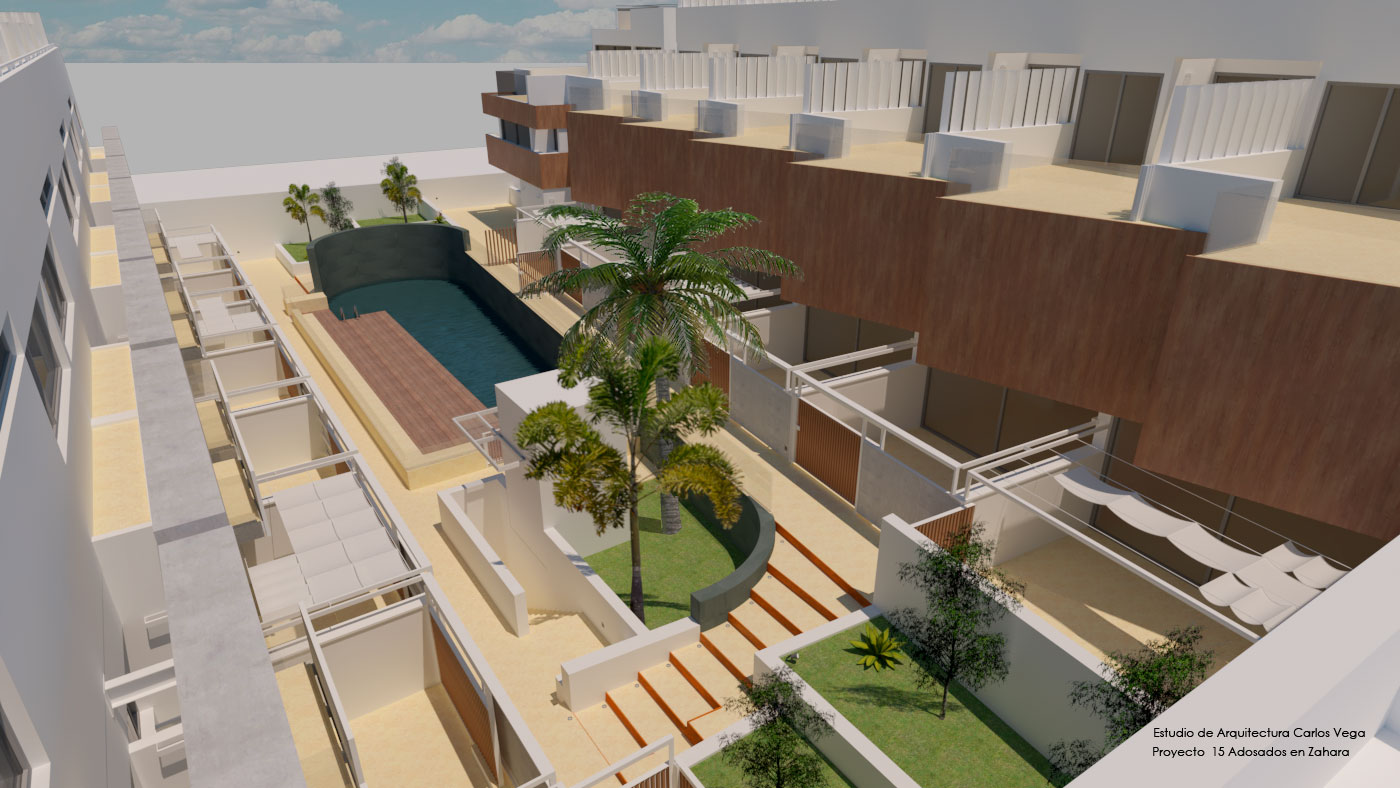

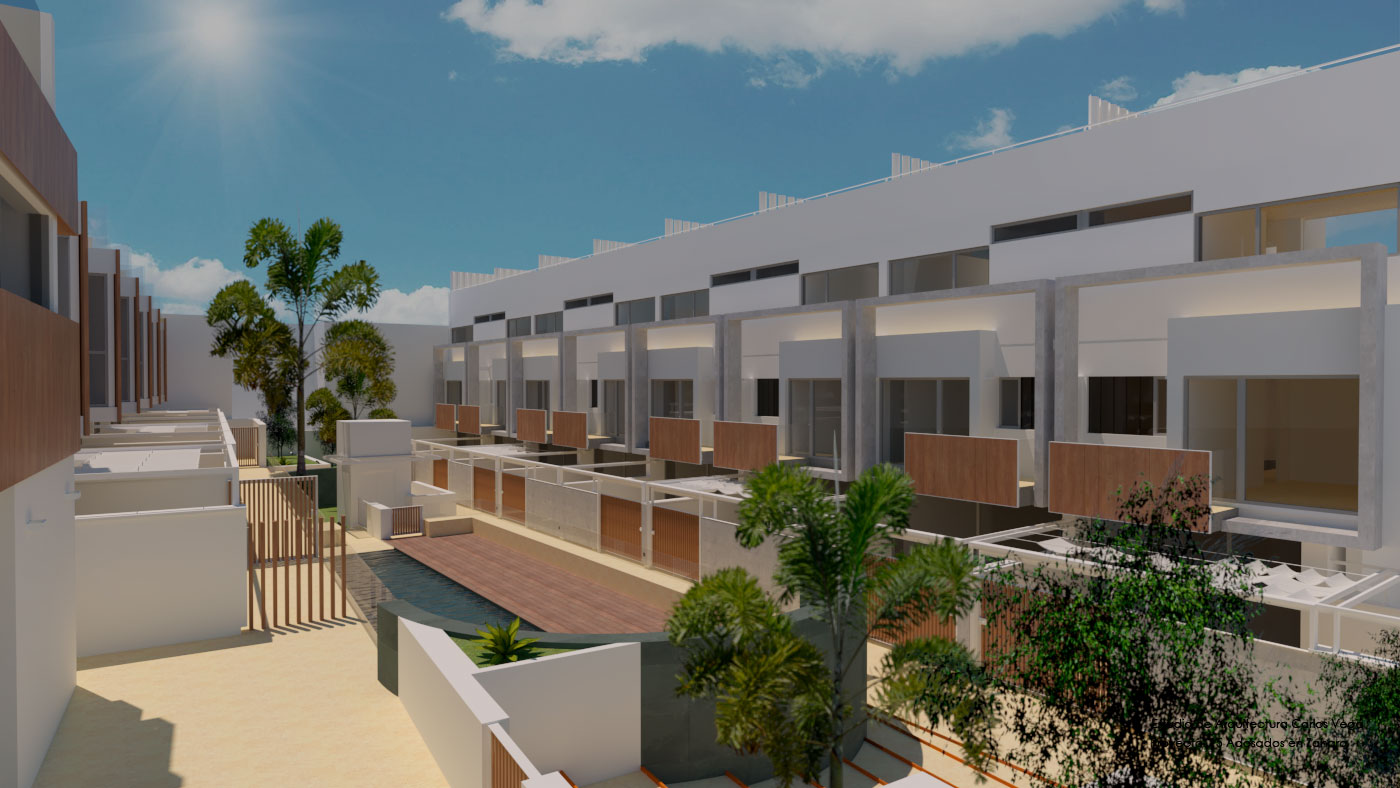

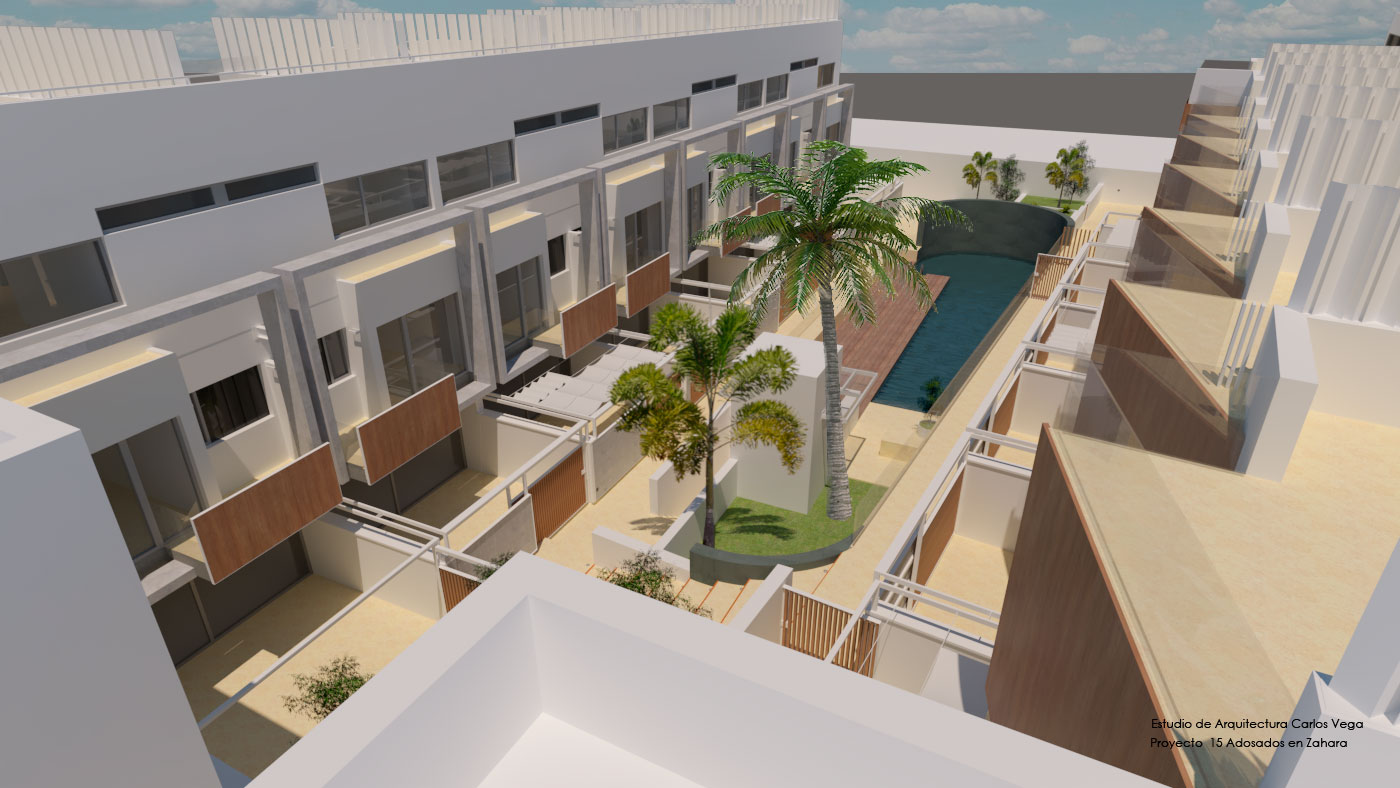

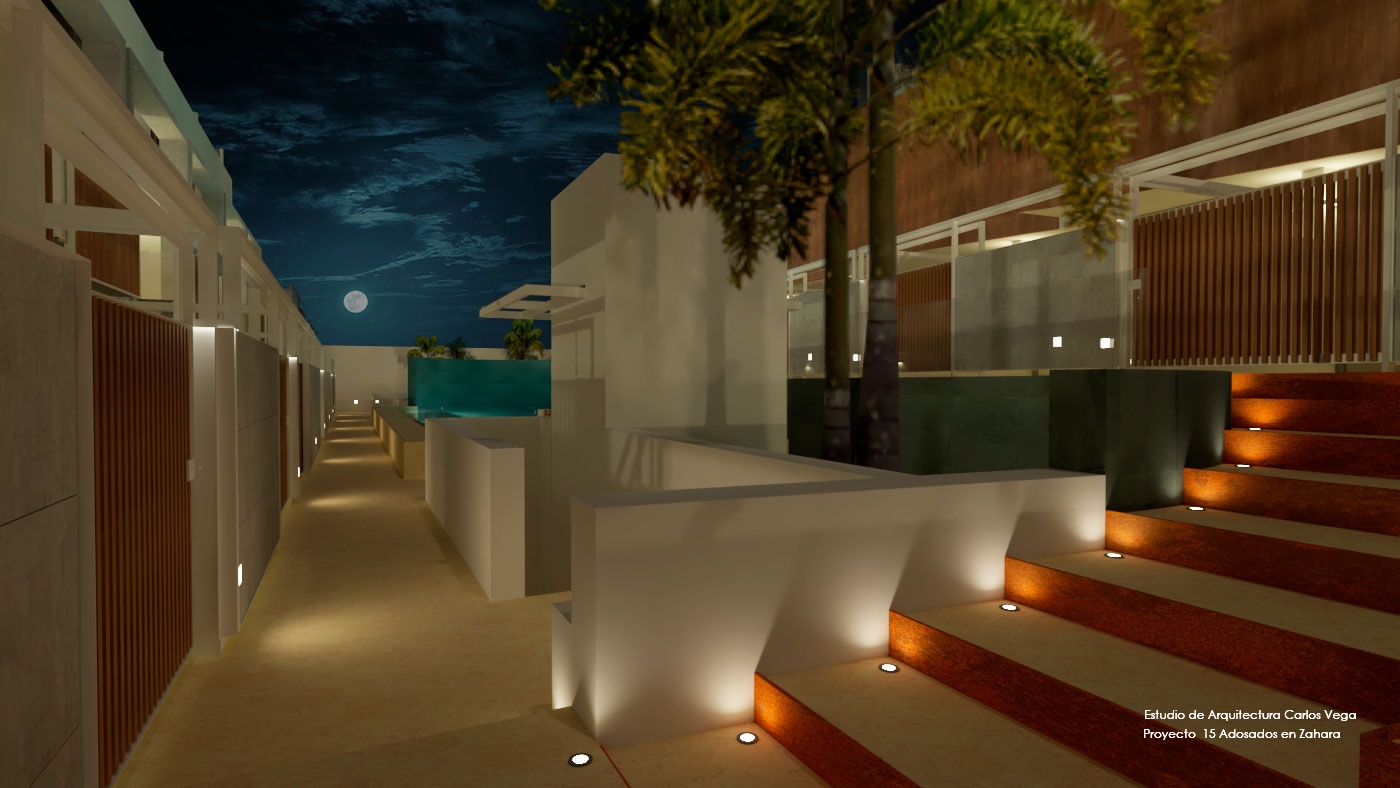

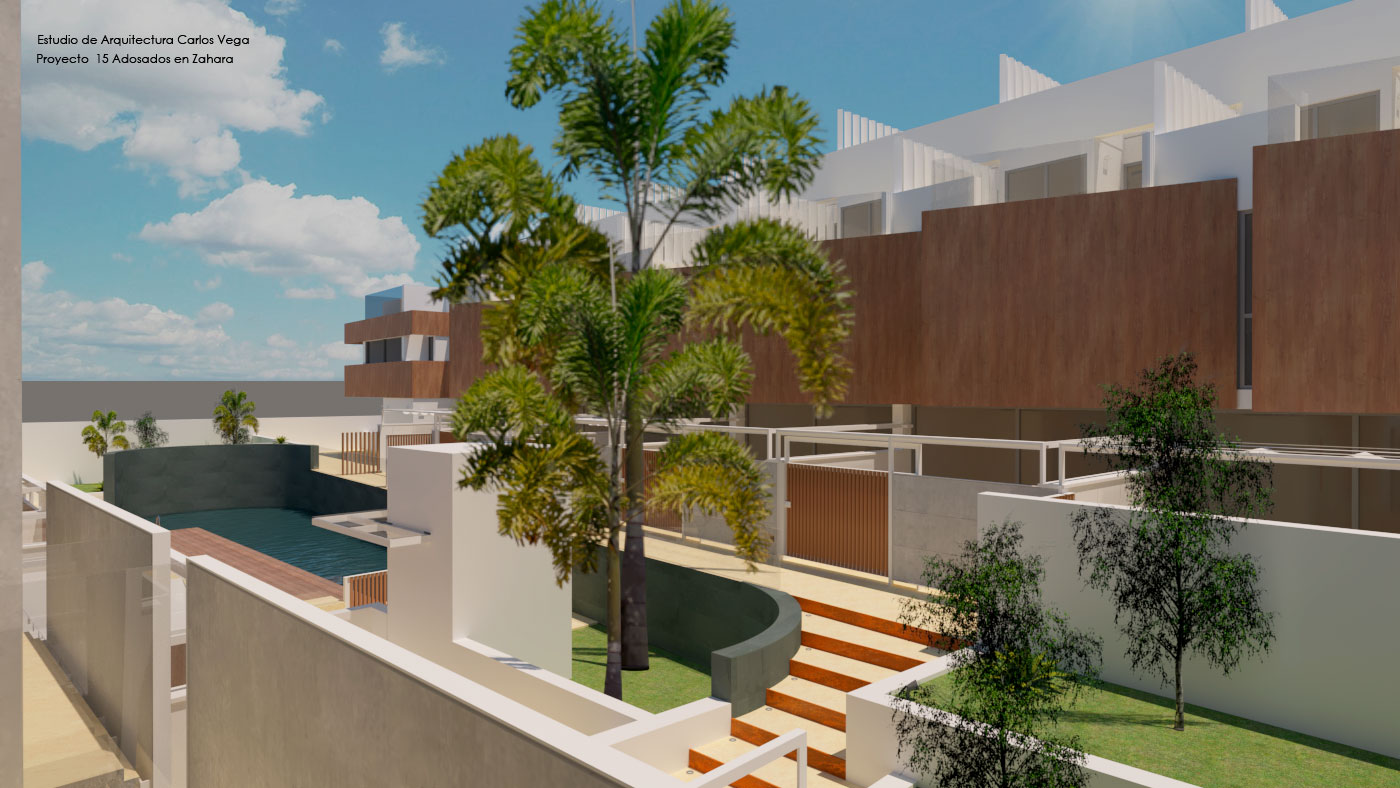

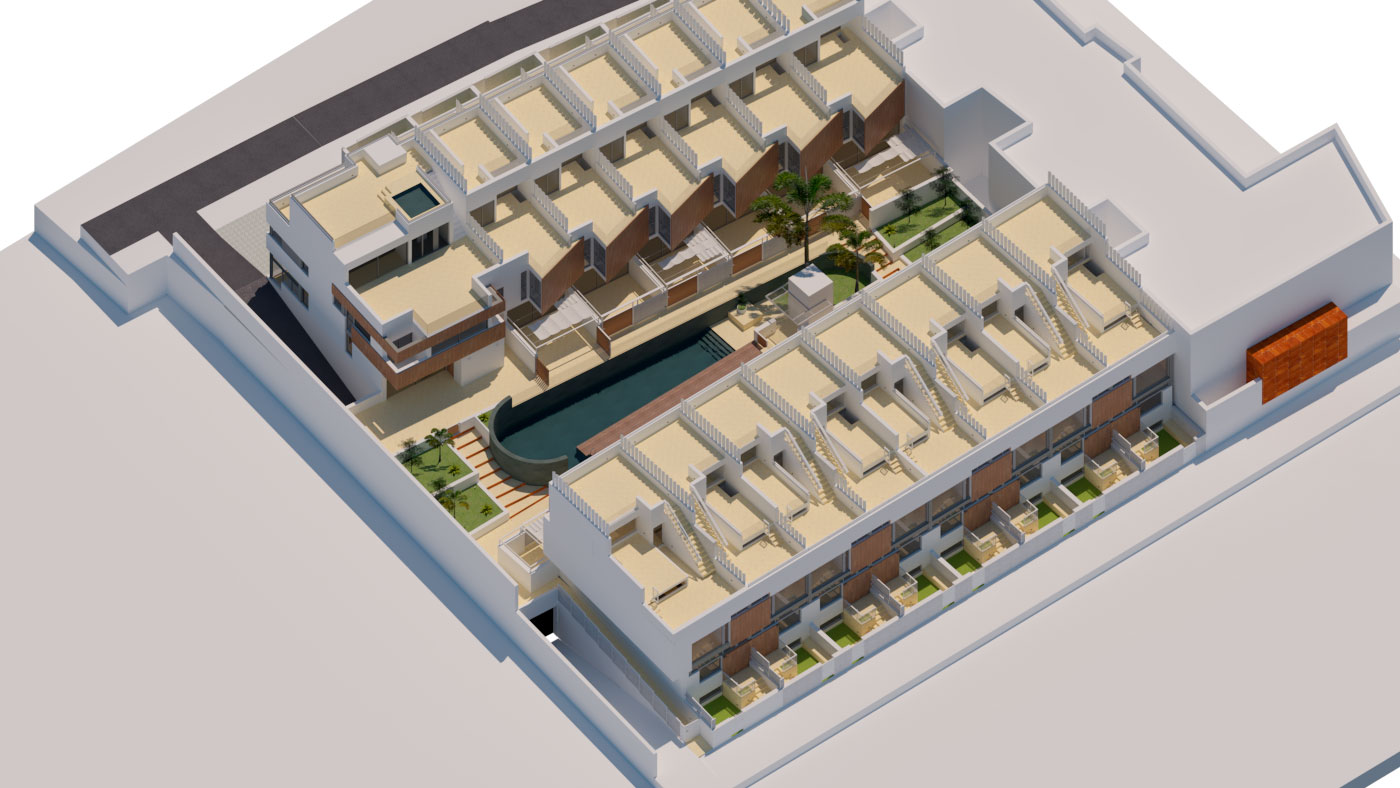

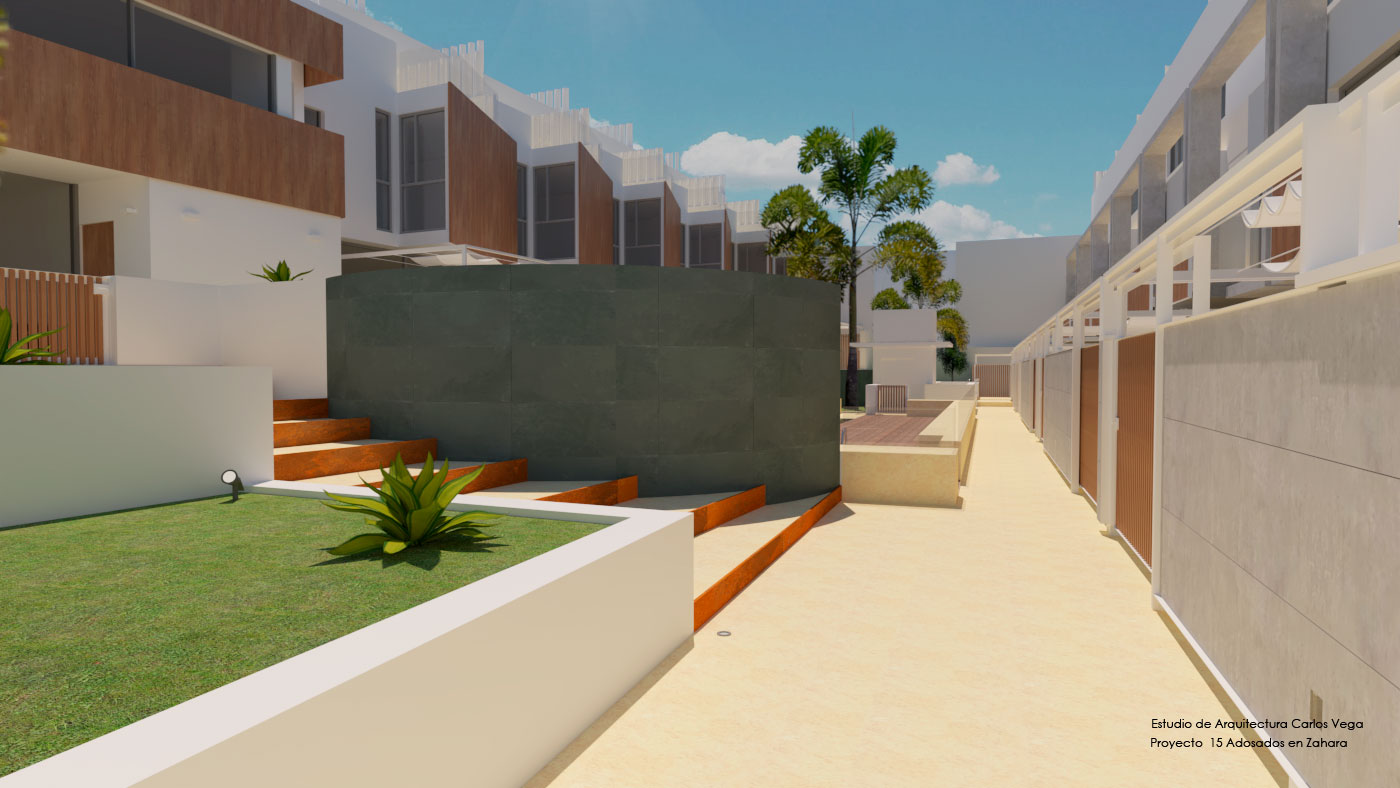

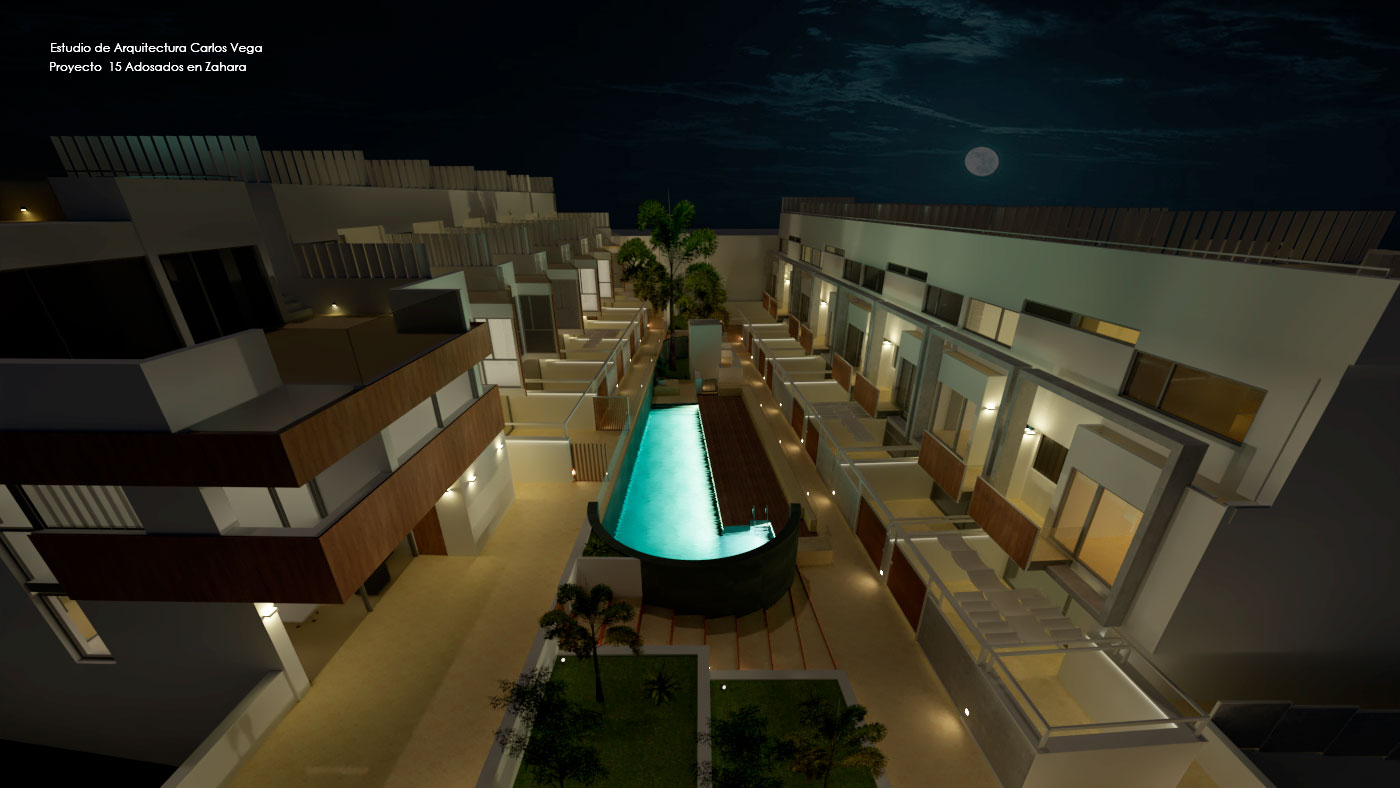

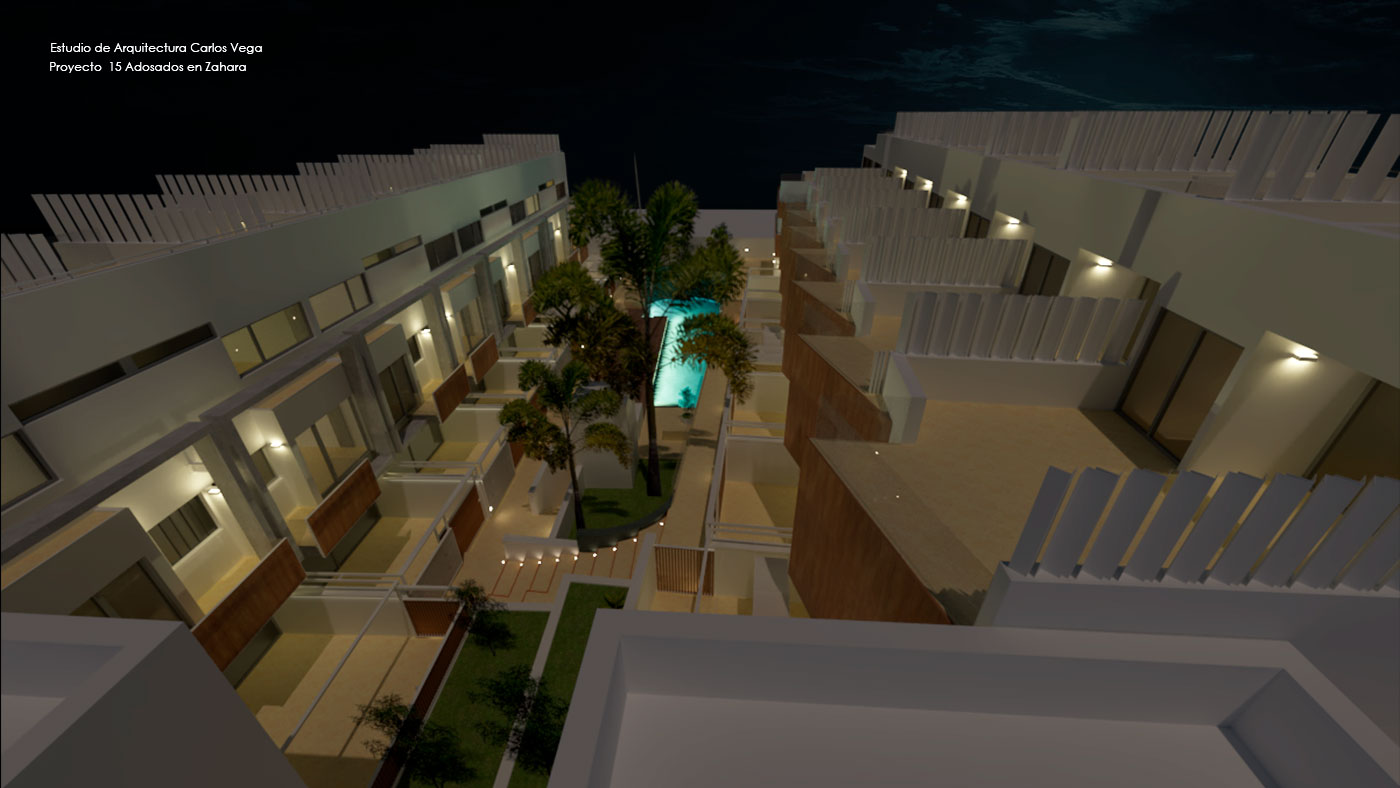

The houses are as follows: A semi-basement floor, ground floor, main floor, second floor and covered roof-room. Large terraces on the upper and lower floors will offer superb sea views. There are two private parking spaces for each property in the semi-basement floor, as well as a private storage area. Each house has its own private, walled garden as well as access to the large communal gardens and communal swimming pool which is centrally located and divides the East and West blocks of the development.

This is a delightfully unusual and creative project that uses design perfection to enhance the relationship between the many spaces that, together, complete each property. The high quality of construction and choice of materials, together with the aesthetics, results in a comfortable, practical space, varying from 256 to 300m2 depending on the individual property.

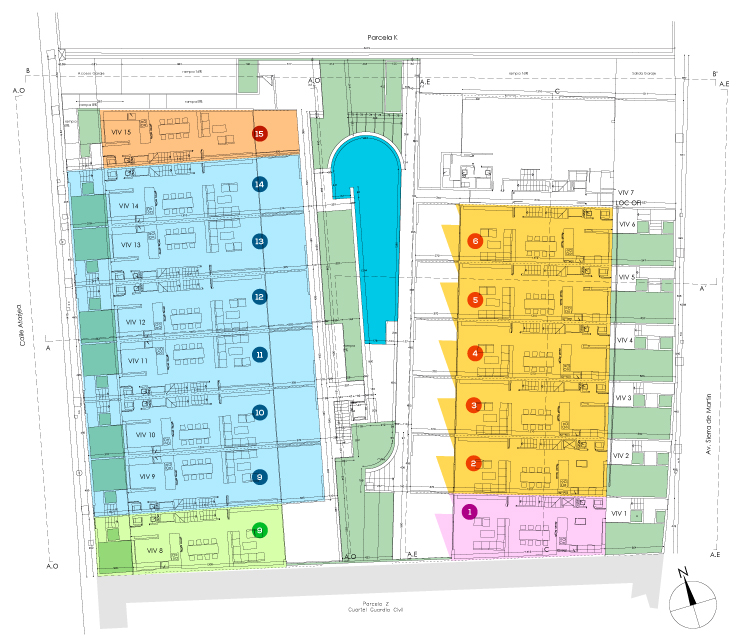

Floor Plan

Homes 9,10,11,12,13,14

Homes 2,3,4,5,6

Home 8

Home 1

Home 15

Image Click on the home type for detailed blueprints

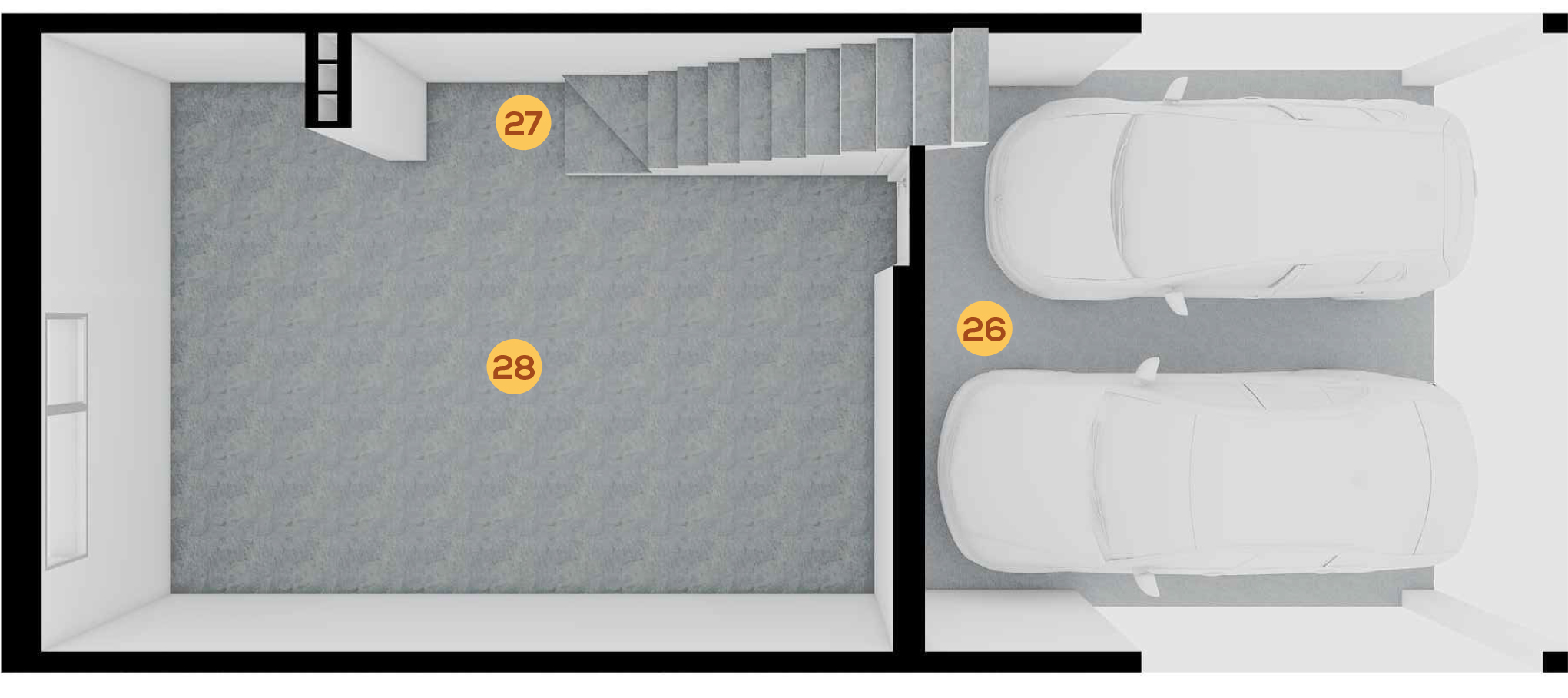

Standard Layout

Semi Basement (Open Plan)

Gross Floor Area

51,44 m2.

Net Floor Area
26 Entry 24.16 m2
27 Access to terrace 3.16 m2
28 Available Space 27.79 m2

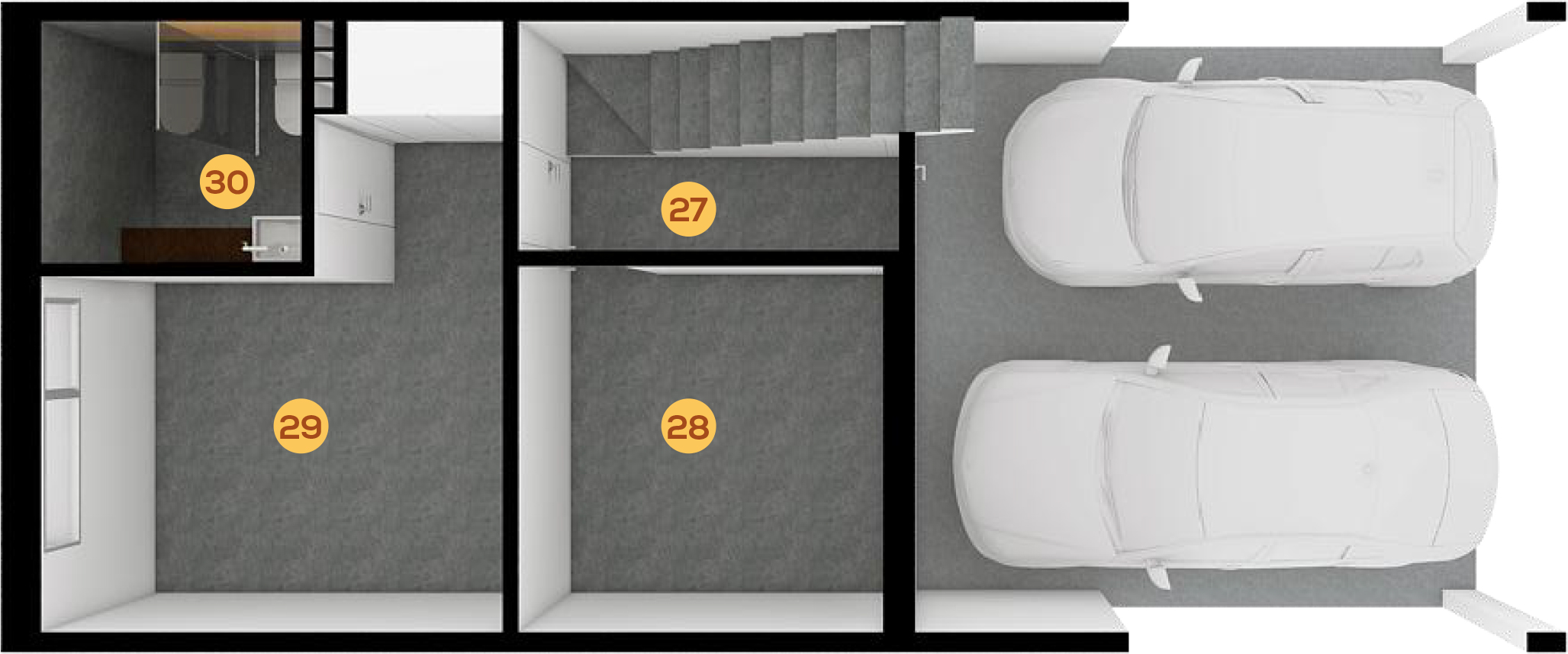

Optional Layout

Semi Basement

Gross Floor Area

51,44 m2.

Net Floor Area
27 Entry 3.16 m2
28 Storage 7.84 m2
29 Bedroom 16.27 m2
30 Bathroom 3.80 m2

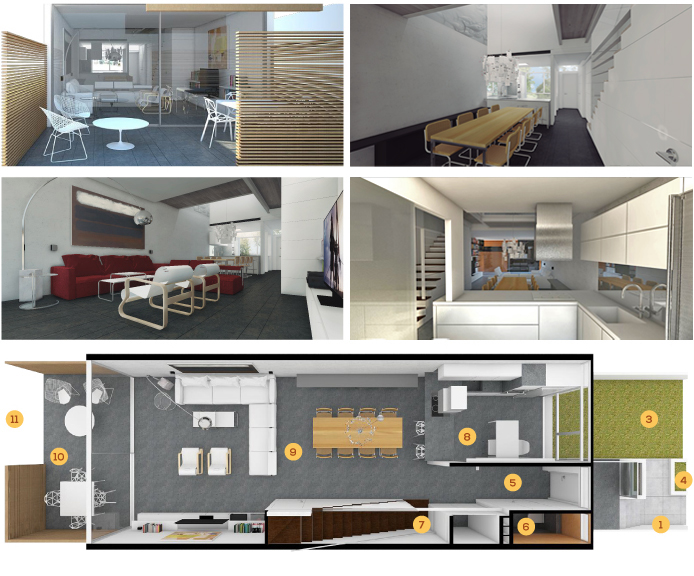

Ground Floor

Gross Floor Area

68,49 m2.

Net Floor Area
1 Entry
2 Access to terrace 4.44 m2
3 Courtyard - Garden 14.85 m2
4 Planter
5 Lobby 2.45 m2
6 Guest W.C./td> 1.49 m2
7 Kitchen 3.88 m2
8 Kitchen 10.54 m2
9 Dining Room 42.71 m2
10 Private Terrace 18.32 m2
11 Communal Areas

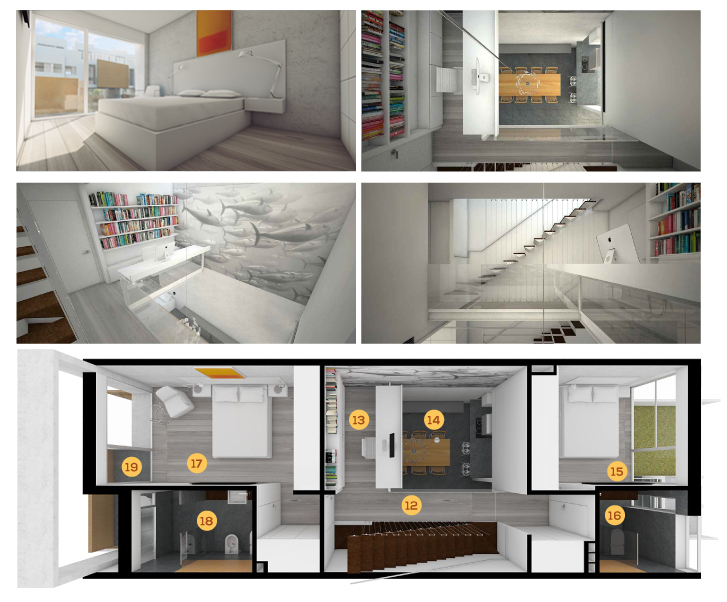

First Floor

Gross Floor Area

59,99 m2.

Net Floor Area
12 Gallery-Staircase 10.31 m2
13 Study 4.44 m2
14 Gap 8.70 m2
15 Bedroom 1 10.15 m2
16 Bathroom 1 3.66 m2
17 Master Suit 16.29 m2
18 Master Bathroom 5.01 m2
19 Bedroom's Terrace 3.73 m2

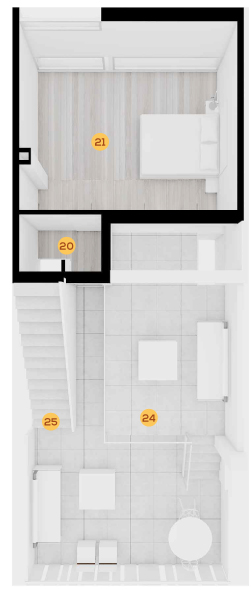

Standard Layout

Atic (open plan)

Standard Layout

23,34 m2.

Net(floor area)
20 Entry 2.40 m2
21 Bedroom 3 18.20 m2
24 West Terrace 37.31 m2
25 Access to Rooftop terrace
26 Rooftop Terrace 23.71 m2

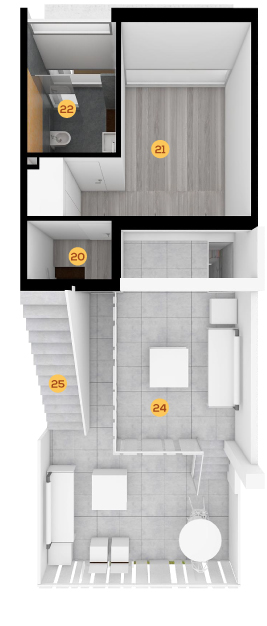

Optional Layout


Gross Floor Area

23.34 m2.

Net(floor area)
20 Hall 2.40 m2
21 Bedroom 3 13.20 m2
22 Bathroom 4.99 m2
24 West Terrace 37.32 m2
25 Access to Rooftop Terrace
26 Rooftop Terrace 23.71 m2

OASIS… Construction Specs

Wall Construction
  • Wall Construction is of insulated air-brick with polyurethane coating overlaying internal block of plasterboard.
  • Internal Walls are of internal block or plasterboard.
Coating and False Ceilings
  • False ceilings of plasterboard in all wet/humid areas and where necessary.
  • All facades with plaster coatings and painted façades.
  • Laminate wood finished panel applied in certain areas of facades.
  • Pre-lacquered MDF paneling in certain interior areas.
  • All roofs and terraces will be fitted, with thermal insulation and waterproofing ready to be tiled with light weight filtering concrete flooring on adjustable studs.
  • Lacquered paneled design doors with beaded panels.
  • Secure entrance door with safety panels.
  • Smooth lacquered, recessed wardrobe doors with hanging bar and shelving.
  • Stained hardwood treads on interior design staircase or similar.
  • External synthetic decorative wood jalousie in certain areas.
Metal Work
  • Sliding doors as well as Tilt and turn windows made of anodised aluminum carpentry, with thermal break and automatic ventilation to avoid condensation.
  • Security rolling shutters in bedrooms and kitchen.
  • Banisters and balustrades from molded perforated aluminum sheets of different widths.
  • Tempered glass balustrades in certain areas.
  • The client can opt for variations in the house, such as the installation of bathrooms on the upper floor, having a bedroom and a bathroom in the semi basement, heating cooling system etc…...
  • Ground floor tiling of irregular pieces of “Calatorao” stone - or premium quality ceramic tiling.
  • Interior floors on the first floor made of quality laminate flooring.
  • Floors and wall tiles in bathroom made of “Calatorao” stone or quality ceramic tiling.
  • Terraces finished in lightweight, anti-slip concrete slab with thermal insulation.
Veneers and Wall Tiles
  • Bathroom tiling in “Calatorao” stone -or ceramic and colored handmade stuco in certain areas.
  • Window sills in white Macael marble or artificial stone.
  • High quality latex based wall paint throughout interiors.
  • Quality white breathable paint used on all external surfaces and façades.
  • Insulated hot and cold water installation in polyethylene.
  • Designer wall hung lavatories and bidets.
  • Porcelain wash basins model Vero from Duravit or similar
  • Synthetic, stone or ceramic laid shower trays.
  • Acrylic bathtubs Model America 1800x1000mm or similar.
  • Swan-neck taps model Essence or similar.
  • Shower controls by Grohe model Euphoria 180 or similar.
  • Bathtub furniture from Roca Model Thesis or similar.
  • Modular kitchen. 3 different types to be chosen by the customer.
  • High quality designer electrical appliances.
  • Video intercom.
  • Telecommunication systems installed, TV and satelite TV plugs in Kitchen livingroom and master bedroom.
  • Air-conditioning/heating pre-installed.
  • Solar panels for H.S.W -Hot Sanitary Water.
Security Alarm System
  • Anti burglar system installed Securitas Direct.


If you have any questions, please don't hesitate to contact us. We can assist you in multiple languages, English and German included.

The information provided is non contractual, the project may be subject to alteration. Virtual images provided.
